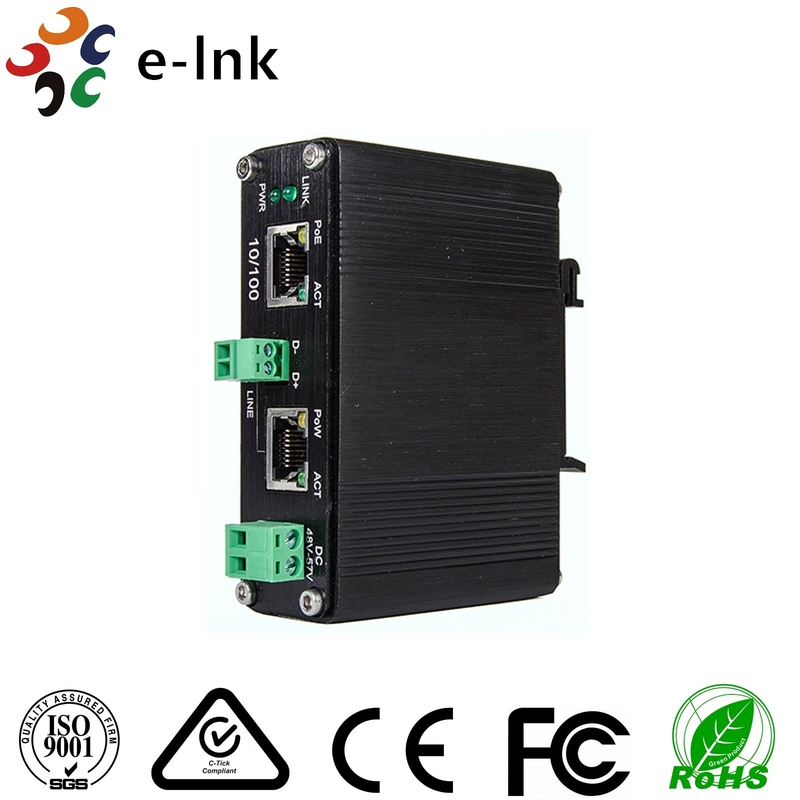

Industrial 10/100Base-TX Ethernet over UTP with PoE+ & PoW Extender

Ethernet

Standards

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Ethernet

Connector

1 × RJ45

Cabling

Cat5 or above

Maximum Distance

100m

UTP

Connector

1 × RJ45

Cabling

Cat5 or above

Distance

Up to 600m on Cast5e Cable

Data Rate

Downlink

90Mbps (Max.)

Uplink

90Mbps (Max.)

Technology

Power Line Communication (PLC)

Electrical and Mechanical

Input Power

48~57VDC (Terminal Block)

or IEEE802.3at PD (for LNK-UP1100P-R only)

Power Consumption

8W Max. (PoW not in use)

60W Max. (PoW in use)

Protection

Reverse Polarity

Present

Power Input Overload

Present

LED Indicators

Power

Power Status

Ethernet

SPD, LINK/ACT, PoE (Transmitter)

Shielded Twisted Pair

LINK (Transmitter) / READY (Receiver) / PoW (Receiver) / ACT

PoE

Standard

IEEE802.3af/at

Port

RJ45

Max.Power

25.5W Max. at RX (Powered Device)

30W Max. at TX (Power sourcing Equipment)

Dimensions (W x D x H)

114 × 72 × 31 mm

Weight

0.25kg

Casing

Aluminum case

Mounting Options

DIN-Rail or Wall Mount

Environmental

Operation Temperature

-10°C to 60°C (14°F to 140°F)

Storage Temperature

-40˚C to 85˚C (-40˚F to 185˚F)

Relative Humidity

5% to 90% non-condensing

MTBF

> 100,000 hrs

Regulatory Approvals

ISO9001

FCC Part 15 Class A

EN55022 Class A

Surge Protection

RJ45: 1KV

BNC: 2KV

Power: 500V
