4K HDMI Fiber Optic Extender 300m Range Zero Latency HDCP 1.2

4K HDMI Fiber Optic Extender 300m Range Zero Latency HDCP 1.2

Product Overview

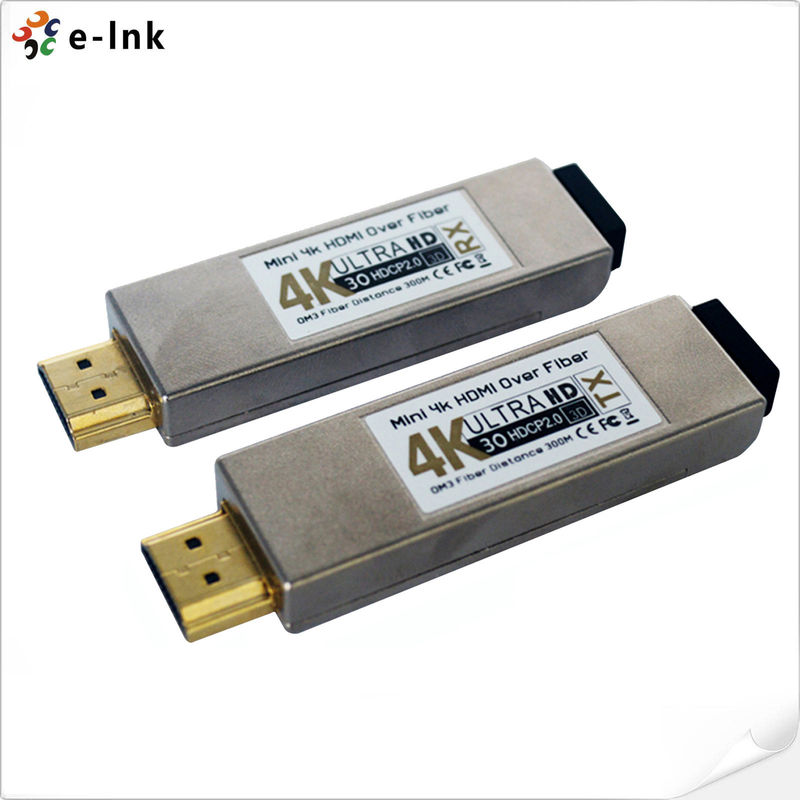

Our cutting-edge Mini 4K HDMI Optical Transceiver represents the next generation of professional AV signal distribution, engineered to meet the rigorous demands of commercial installations. This innovative fiber optic solution delivers uncompressed 4K×2K@30Hz video with zero latency across 300-meter OM3 multimode fiber connections, outperforming traditional copper-based extenders by 300% in maximum transmission distance.

The system comprises matched transmitter-receiver units that convert HDMI 1.4a signals to 10Gbps optical data streams while maintaining full HDCP 1.2 content protection. Designed for integrators, our transceiver preserves original 4:4:4 chroma sampling for HDR content and supports next-gen audio formats including Dolby Atmos and DTS:X. The industrial-grade metal housing provides exceptional EMI/RFI shielding, ensuring reliable operation in electrically noisy environments common to broadcast facilities and industrial settings.

Technical Specifications

1. Video Performance

• Native support for 4K UHD (3840×2160@30Hz)

• Maintains 8/10/12-bit color depth

• Full 4:4:4 chroma subsampling preservation

2. Optical Transmission

• 850nm VCSEL optical engine

• Dual LC fiber connectors (OM3 multimode)

• 10.3Gbps bandwidth capacity

3. Power & Environmental

• USB-powered operation (5V/0.85A)

• Ultra-low 1.42W power consumption

• Operating range: 0°C to +70°C

4. Compliance & Certifications

• HDMI 1.4a/HDCP 1.2 compliant

• CE/FCC/RoHS certified

• SMPTE ST 2082 broadcast standard

 Professional Application Scenarios
A. Broadcast & Live Production

• Mobile production trucks requiring 4K HDR monitoring

• Studio camera loop-through systems

• Large-venue IMAG applications

B. Corporate & Education

• Boardroom presentation systems

• Distance learning classrooms

• Video wall controllers

C. Digital Signage

• Airport flight information displays

• Shopping mall advertising networks

• Stadium jumbotron feeds

D. Industrial & Medical

• Surgical imaging systems

• Factory automation monitoring

• Security operation centers

System Integration Features

• Hot-pluggable design for live system maintenance

• Auto-EDID management simplifies installation

• Compatible with Crestron/Extron control systems

• Rack-mountable with optional accessories

V. Why Choose Our Solution?

• 40% smaller footprint than competing models

• Military-grade components for 24/7 operation

• 3-year extended warranty option

• Dedicated technical support team

Technical Indexes

Ordering Information

Product application display diagram
