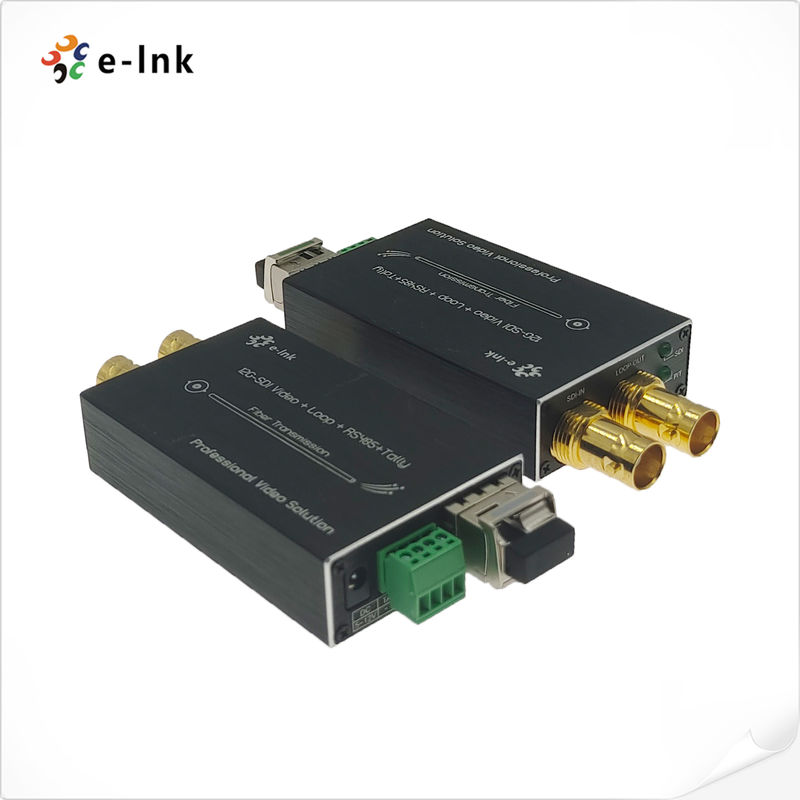

Model: LNK-M12G-1V
Overview
LNK-M12G-1V Series Mini-type 12G-SDI Fiber Converter supports 1-channel 12G Video (audio embedded) &
Tally signal(or Backward RS485) transmitted via fiber optical cable, and monitor the signal locally over a 12G loop
output. E-link 12G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4K*2K(3840*
2160@60Hz), 1080P,1080I, 720P.
Features
► Each SDI channel includes 8-channel audio embedded
► Automatic cable equalization to ensure signal integrity
► Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)
► Integrated Clocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 M bps
► Directly compatible with 12G/6G/3G-SDI camera systems
► Long transmission capability at least 10 km (6.2miles) , up to 80 km
► Terminal block power input for industrial application
► Supports hot swapping and hot plugging
► Full digital non-compression broadcast level transmission;
► super optic dynamic range and free of adjustment;
► fiber optic WDM/CWDM/DWDM technique;
►Supports 4K*2K(3840*2160@60Hz),1080P,1080I,720P.
Technical Indexes
| Formats |
Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD) |
| Compatible |
Compatible With D VB-ASI and AES10 (MADI) |
| Input |
1 x 12G-SDI on BNC |
| Output |
1 x LC optical fiber |
| 1 x 12G-SDI loop-out on BNC |
| Supported Resolution |
HDTV 4K*2K, 1080P, 1080I, 720P |
| Resolution range |
3840*2160@60Hz |
| Input cable specification |
≤70m@12G SDI Belden 1694A |
| Output cable specification |
≤70m@12G SDI Belden 1694A |
| Data type |
Backward Tally (optional) |
| Data type |
Backward RS485 (optional) |
| Optical transmission bandwidth |
270MHz～12GHz |
| Power |
5-15 VDC |
| Power Consumption |
2 W (Max.) |
| Dimensions (LxWxH) |
80 x 40 x 20 (mm) |
| Storage Temperature |
-40℃～80℃ |
| Operating Temperature |
-40℃～85℃ |
Application
Ordering information
| Model |
Description |
| LNK-M12G-1V1T-20 |
Mini-type 12G-SDI to Fiber Converter with Tally and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
| LNK-M12G-1V1R-20 |
Mini-type 12G-SDI to Fiber Converter with Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
